Kadee 743 O Scale Type E Short Centerset Metal Couplers with Plastic Gear Boxes

This industry leading coupler features New Generation AAR Type “E” “Prototype” Head Short Centerset Metal Couplers, and #850 O Scale centering spring and comes complete with Short Plastic Gearboxes and lids. The #743 Metal Coupler may be mounted with the included Short Plastic Gearbox (#806 type).

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

• Two pair per package
• UPC: 765484007432
• USA Flag Made in the U.S.A.
• O-Scale

New Generation AAR Type “E” “Prototype” Head:

• Simple Drop in Design
• Trouble Free Operation
• Hidden Knuckle Spring
• AAR Type “E” Coupler Style
• Compatible with Kadee® O-Scale Couplers
• World-Renowned Quality & Performance
• They just Last & Last & Last…

Package Includes:

• (4) Each #743 Type “E” “Prototype” Metal Couplers – Short Centerset Shank

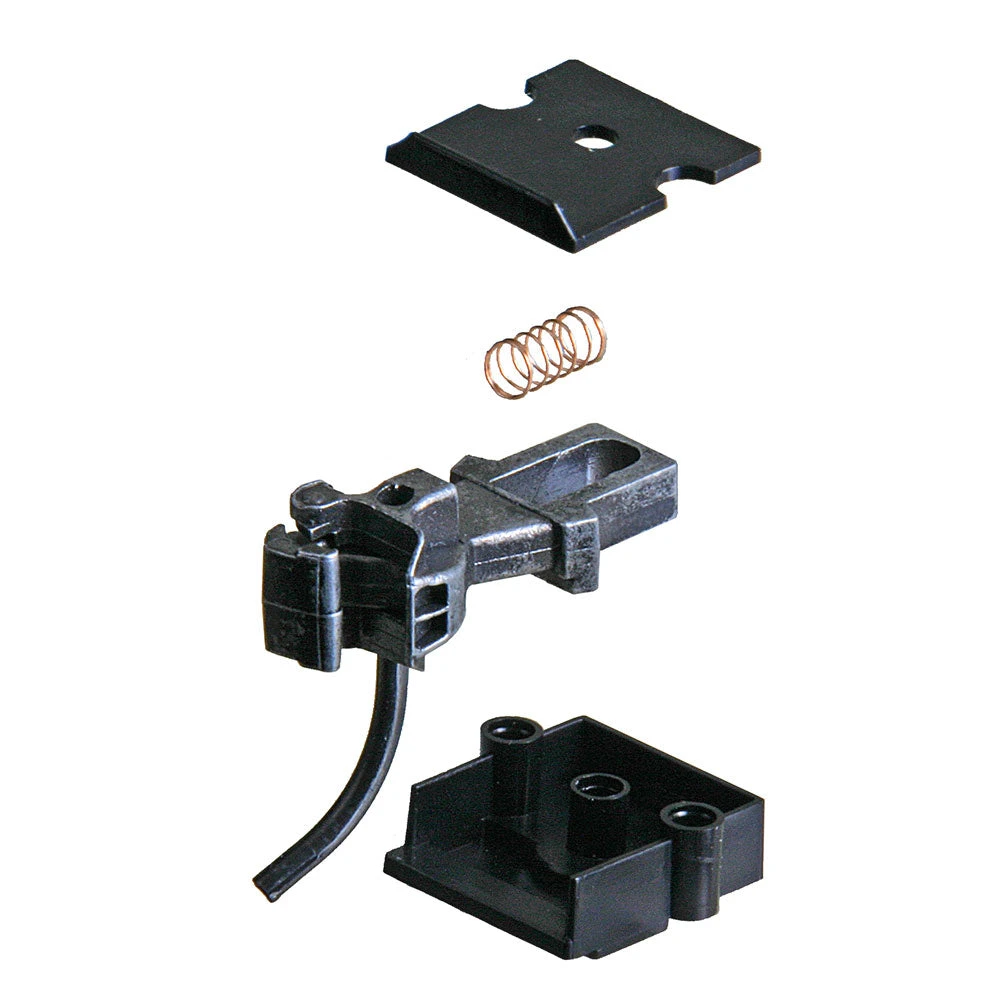

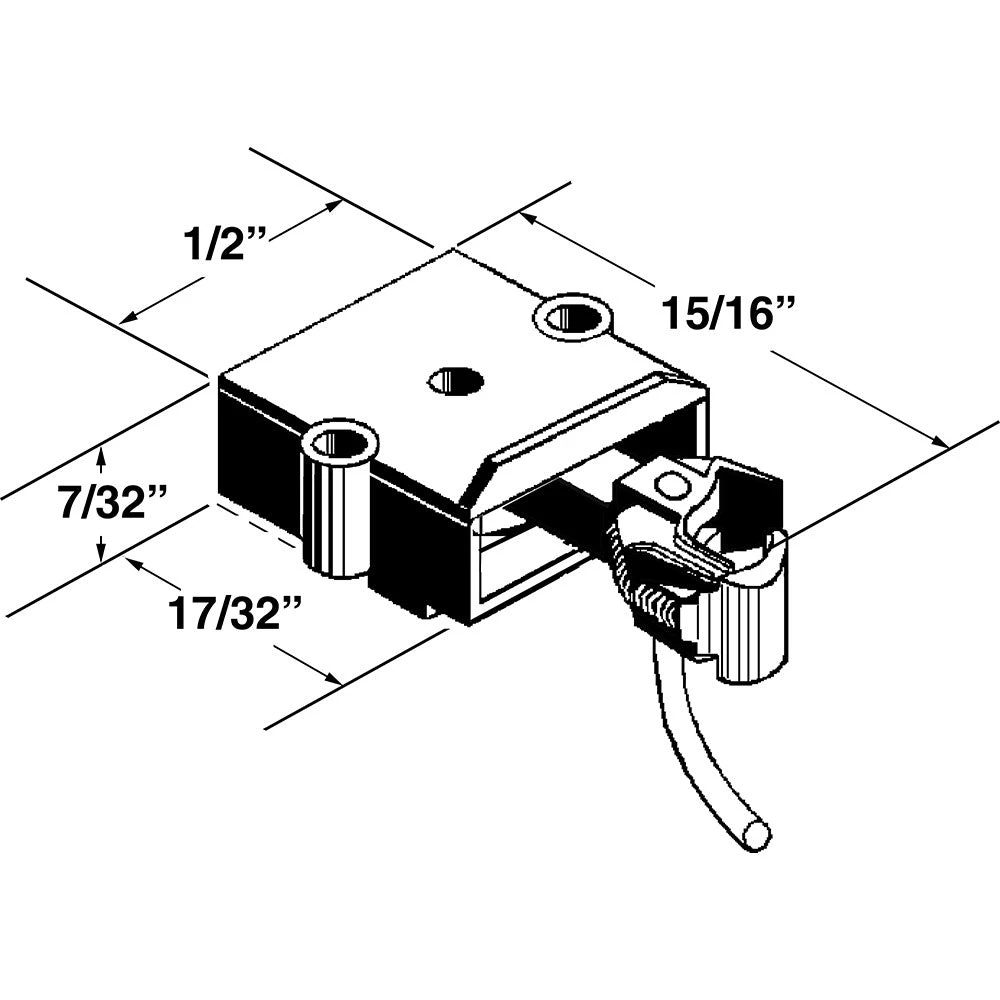

• (4) Each Short Plastic Gearboxes & lids (#806 type)
• (5) Each #850 O Scale Centering Springs

#743 Metal Coupler Features:

• Material – Metal

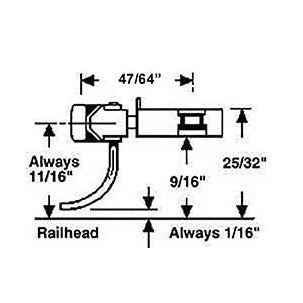

• Shank Length – Short (47/64″) (Knuckle pulling face to center hole of Draft Gearbox)
• Coupler Offset – Centerset
• Centering Spring – #850 O Scale Centering Springs
• Head – New Generation AAR Type “E” “Prototype” Head
• Works In Place of – #806 O Scale Short Centerset Shank Couplers
• Works With – #806 type Draft Gearboxes
